Nail Penetration Testers

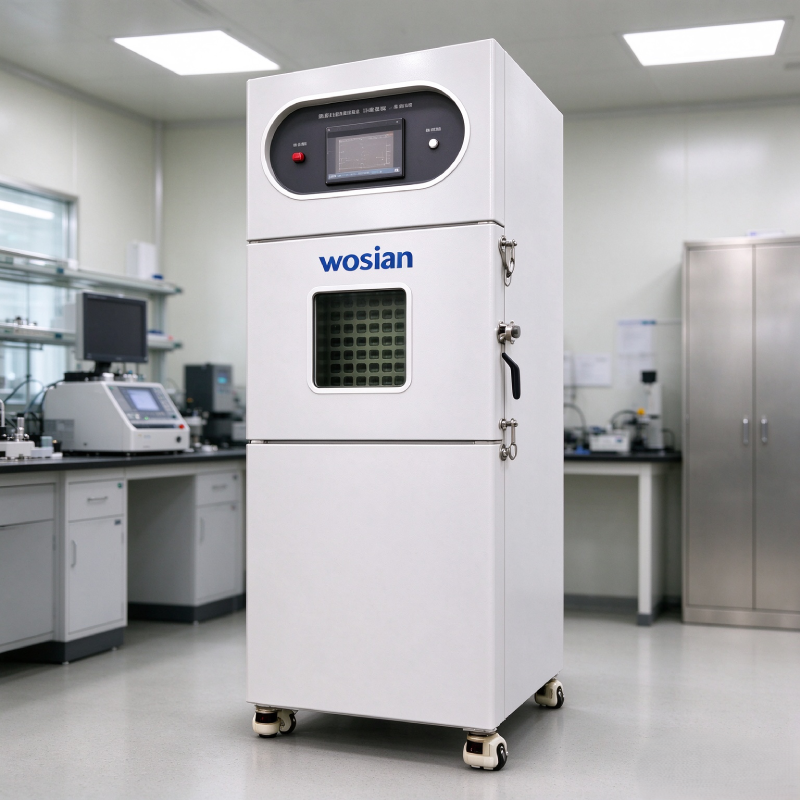

Wosian Nail Penetration Tester is designed to simulate internal short circuits and evaluate the thermal runaway behavior of lithium-ion batteries under mechanical abuse. Key Advantages: • Standards Compliant: Fully meets IEC 62133, UL 1642, UN 38.3, and GB/T 31241 procedures. • Precision Control: Adjustable needle diameter (2-8mm) and penetration speed (10-40mm/s). • Maximum Safety: Built-in explosion-proof chamber, smoke exhaust system, and door interlock. • Real-Time Data: Multi-channel monitoring for force, displacement, voltage, and temperature.
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description

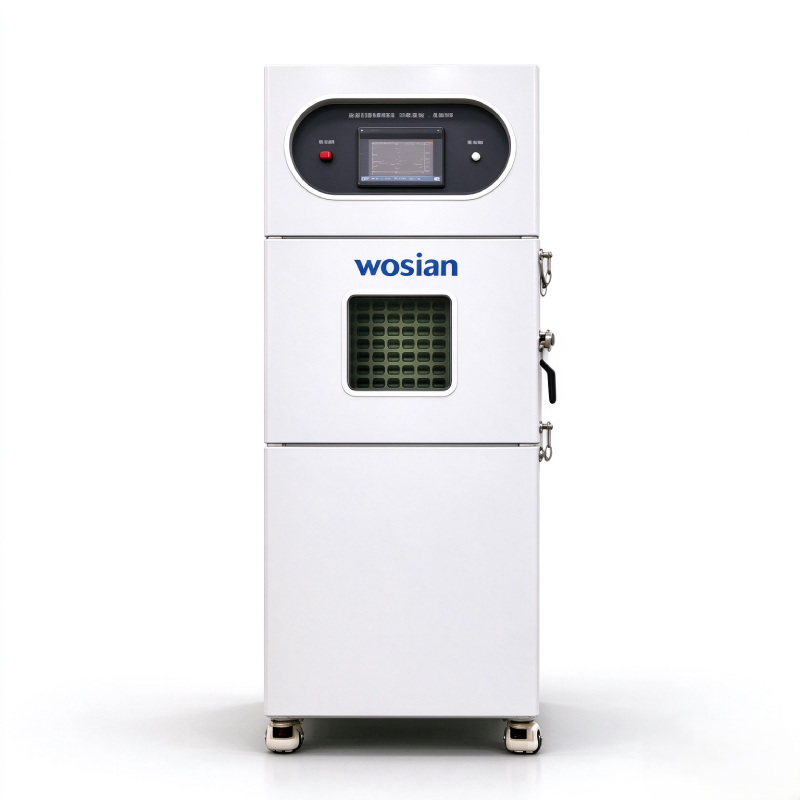

Nail Penetration Tester,Simulate internal short circuits and evaluate the thermal runaway behavior of lithium-ion cells with Wosian’s high-precision testing equipment.
Nail Penetration Tester Key Features
- High-Precision Drive System: Driven by a servo motor and ball screw, ensuring uniform penetration speed and highly repeatable testing results.
- Multi-Channel Data Acquisition: Real-time monitoring of Force, Displacement, Voltage, and Temperature curves during the test. Data can be exported via USB.
- Explosion-Proof Safety Design: The chamber is equipped with reinforced explosion-proof glass, a pressure relief vent, and a high-efficiency exhaust fan to protect operators.
- Customizable Test Fixtures: Supports various sizes of prismatic cells, cylindrical cells, and pouch cells.
